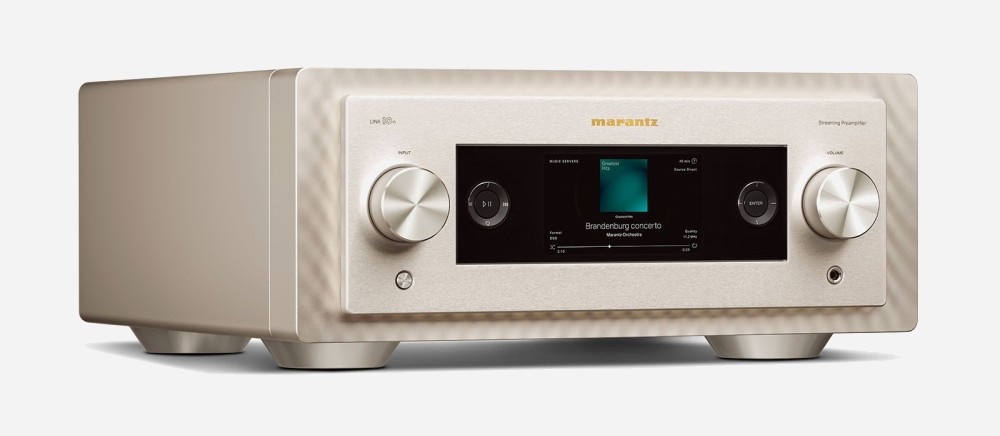

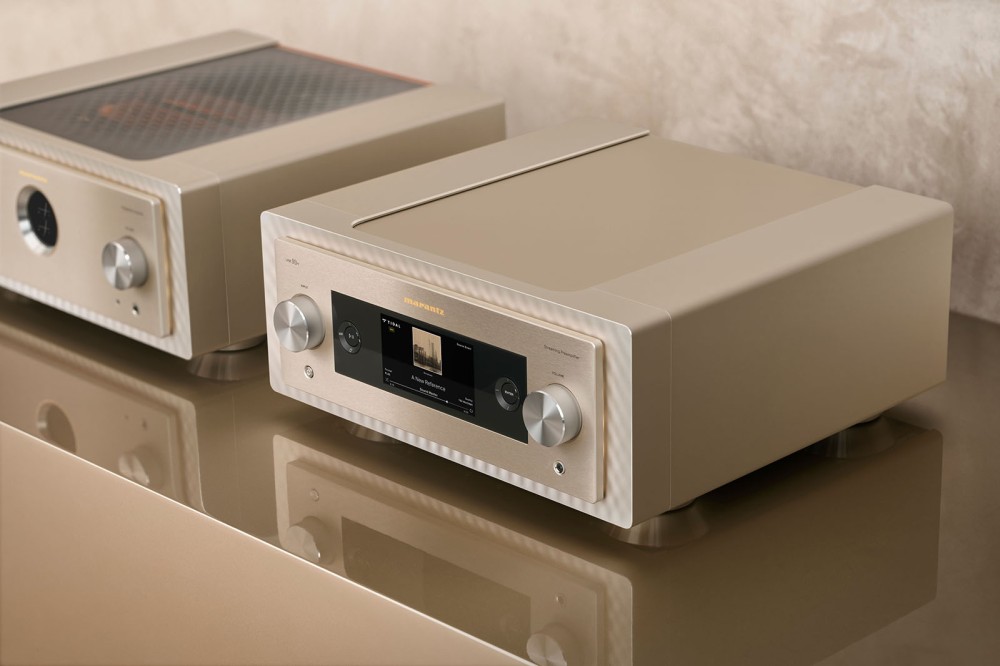

A perfect companion to the Marantz Model 10 stereo amplifier (see first photo below), the Marantz Link10 network player also has many audiophile specifications. First of all, its design is in the same vein as that of the Model 10 (see photos below) associated with exclusive high-end Marantz HDAM components and a 32-bit DAC.
Marantz Link10n, audiophile aims££££

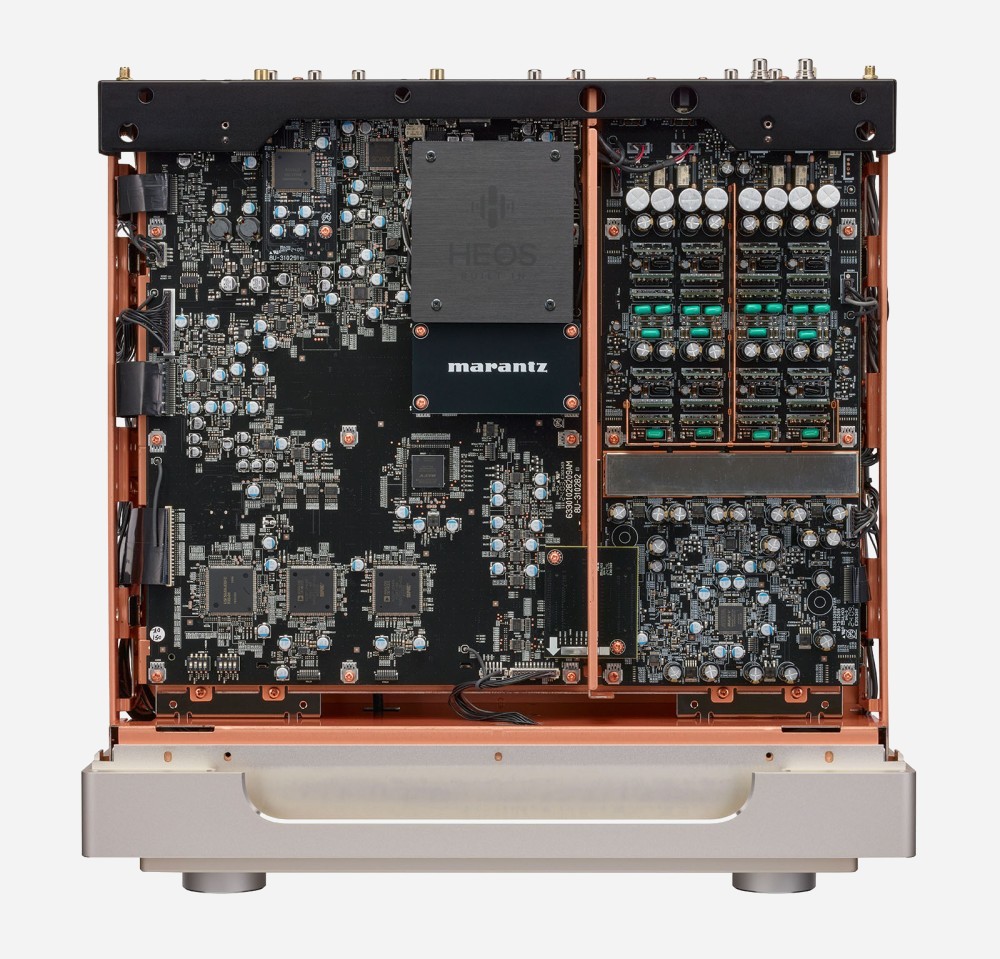

We also note on the Marantz Link10n exclusive new generation HDAM audiophile components, two toroidal transformers, a 32-bit DAC and support for [abc]MP3[/abc], [abc]WMA[/abc], [abc]AAC[/abc], [abc]Lossless[/abc] [abc]Alac[/abc] (384/24), [abc]Flac[/abc] (384/24) or [abc]Wav[/abc] (384/24), [abc]PCM[/abc] 384 kHz and [abc]DSD[/abc] 2.8/5.6/11.2 MHz ([abc]Firmware[/abc] update to come for the signals 11.2 MHz) via USB-B port; DSD 2.8/5.6 and PCM 192 kHz via [abc]Wi-Fi[/abc].
The Link10n features the exclusive Marantz Musical Mastering process. The latter first converts all signals to DSD 256 (11.2 MHz) using two master clocks, then performs a direct conversion of the 1-bit data into an analog stream, without passing through a digital-to-analog converter.
Finally, the chassis is reinforced with a triple metal layer (2 x 1 mm), the top cover is 12 mm thick, the side panels 16 mm. Of course, the front panel and remote control also adopt the aluminum material.
Marantz Link10n, Heos multiroom module££££
The Marantz Link10n also benefits from the Heos multiroom functionality (see photo below) to easily transform this Network Player into a link in a larger audio chain including, for example, real Denon Home active speakers to provide sound for a home.
Among the other functions associated with the Heos functionality, we note access to Spotify services (Spotify Connect compatibility), Amazon Music HD, Tidal Connect, Deezer… Plus access to thousands of [abc]webradios[/abc] via TuneIn or to a local music library shared on the home network through [abc]Bluetooth[/abc] 5.4, [abc]Wi-Fi[/abc] 5 Dual Band and [abc]AirPlay 2[/abc] compatibilities.
Marantz Link10n, connectivity££££

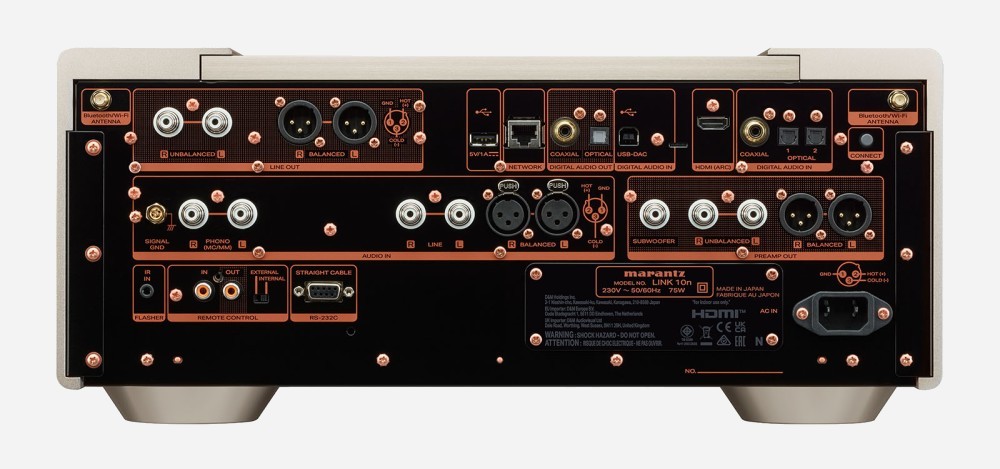

In terms of connectivity, the Marantz Link10n has an [abc]HDMI[/abc] input with the [abc]ARC[/abc] function to retrieve sound from the TV, a Pnono (MM/MC) input, a fixed [abc]RCA[/abc] stereo line input, a [abc]XLR[/abc] stereo line input, a [abc]coaxial[/abc] input/output, two [abc]optical[/abc] inputs/outputs, a fixed [abc]RCA[/abc] stereo line output, a [abc]XLR[/abc] stereo line output, a [abc]RCA[/abc] stereo Pre-Out output, a [abc]XLR[/abc] stereo Pre-Out output, a subwoofer output, an asynchronous [abc]USB[/abc]-B port, a Powered USB-A, [abc]Ethernet[/abc] port, [abc]RS-232[/abc]C jack, D-Bus input/output, Flasher input plus a 6.3 mm headphone output on the front.
Finally, it should be noted that the Marantz Link10n is Roon Ready certified.
Available immediately in black or silver/gold. Recommended price: 12,000 euros.
Reminder of the key features of the Marantz Link10n:
• Type: network player
• Converter: 32-bit DAC
• Transformer: double toroidal
• Codec compatibility: [abc]MP3[/abc], [abc]WMA[/abc], [abc]AAC[/abc], [abc]Alac[/abc] (96/24), [abc]Flac[/abc] (192/24), [abc]Wav[/abc] (192/24) and [abc]PCM[/abc] 384 kHz
• Music service compatibility: [abc]Webradios[/abc] (TuneIn), Spotify Connect, Deezer, Tidal Connect, Amazon Music
• [abc]DSD[/abc] compatibility: 2.8/5.6/11.2 MHz
• [abc]Hi-Res Audio[/abc] certification: yes
• Signal-to-noise ratio: 122 dB
• THD (Total Harmonic Distortion): 0.0004%
• Frequency response: 2 Hz - 50 kHz
• Input(s): 1 x [abc]HDMI[/abc] input with [abc]ARC[/abc] function, 1 x Pnono (MM/MC) input, 1 x fixed [abc]RCA[/abc] stereo line input, 1 x [abc]XLR[/abc] stereo line input, 1 x [abc]coaxial[/abc] input, 2 x [abc]optical[/abc] inputs, 1 x asynchronous [abc]USB[/abc]-B port, 1 x powered USB-A port, 1 x [abc]Ethernet[/abc], 1 [abc]RS-232[/abc]C jack, 1 D-Bus input, 1 Flasher input
• Output(s): 1 [abc]coaxial[/abc] output, 1 [abc]optical[/abc] output, 1 fixed [abc]RCA[/abc] stereo line output, 1 [abc]XLR[/abc] stereo line output, 1 [abc]RCA[/abc] stereo Pre-Out output, 1 [abc]XLR[/abc] stereo Pre-Out output, 1 subwoofer output, 1 D-Bus output, 1 Flasher input plus 1 6.3 mm headphone output on the front
• Gapless function: yes
• Others: exclusive new generation HDAM components, exclusive Marantz Musical Mastering process
• Multiroom function: yes, Heos
• Connectivity: [abc]Wi-Fi[/abc] 5 Dual Band, [abc]Bluetooth[/abc] 5.4, [abc]AirPlay 2
• App: Heos (Android/iOS)
• Anti-vibration chassis: yes, triple-layer metal
• External DAC function: yes, via optical, coaxial, USB-B
• Power consumption (on/standby): 75 W/0.2 W
• Dimensions (W x D x H): 440 x 472 x 192 mm (antennas extended)
• Weight: 33.3 kg
