The Onkyo TX-8470's menu therefore includes [abc]streaming[/abc] wireless [abc]Wi-Fi[/abc] 5 Dual Band (2.4/5 GHz), [abc]AirPlay 2[/abc], [abc]Bluetooth[/abc] 4.2 APT-X, [abc]Chromecast (integrated)[/abc], Spotify Connect, Deezer, Tidal and Amazon Music HD. The [abc]UPnP[/abc] ([abc]DLNA[/abc]) and Roon audio gateway functions, combined with the Ethernet port or Wi-Fi, are of course included. The same goes for access to several thousand [abc]Webradios[/abc] (Tunein) and multiroom functionality (Sonos compatibility in addition to AirPlay and Chromecast).
Onkyo TX-8470, audiophile and other features££££
For the rest, we find the exclusive Class G Dynamic Audio Amplification (high current, low impedance architecture to precisely manage large speakers), an EI transformer, a slightly higher total power of 2 x 160 W under 6 ohms, gold-plated RCA connectors, a rich connectivity and the presence of a digital radio tuner [abc]Dab+[/abc] and AM/FM RDS with forty presets. Not to mention two high-capacity capacitors and a rigid chassis that allows you to enjoy all kinds of musical sources with the best sound quality.
The Asahi Kasei 384 KHz/32-bit digital-to-analog audio converter offers [abc]Hi-Res Audio[/abc] certification. It is combined with VLSC (Vector Linear Shaping Circuitry) technology to eliminate ultra-high frequency interference. Compatibility [abc]MP3[/abc], [abc]WMA[/abc], [abc]Wav[/abc] [abc]AIFF[/abc], [abc]Flac[/abc] (up to 192 kHz/24 bits for the latter three), [abc]AAC[/abc], [abc]LPCM[/abc] and [abc]DSD[/abc] 2.8 MHz, 5.6 MHz and 11.2 MHz is ensured.
££££ Onkyo TX-8470, the connections££££

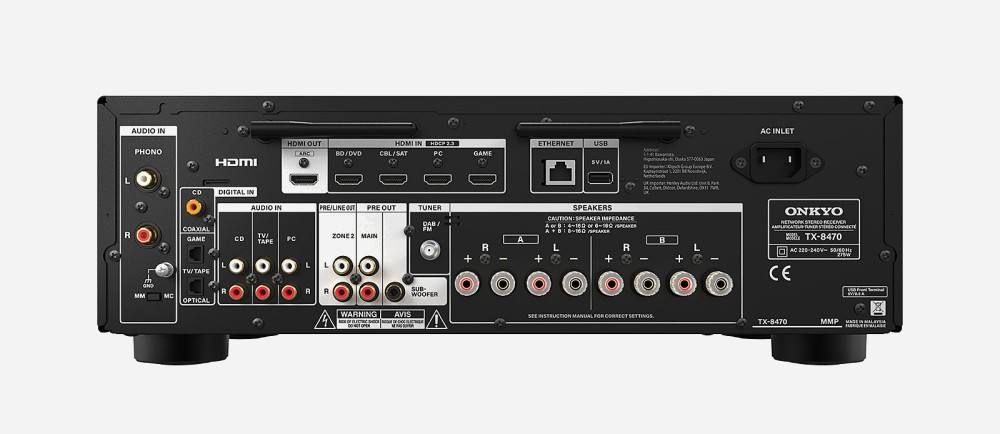

The connections include four stereo [abc]RCA[/abc] inputs including a Phono MM/MC input, a [abc]coaxial[/abc], two [abc]optical[/abc], a Zone 2 stereo Pre Out output via stereo RCA, a Pre-Out output to transform the TX-8470 into a pre-amplifier if it is associated with a power amplifier, a [abc]USB[/abc] Host port on the front, a powered USB Host port on the rear to power a dongle for example, an [abc]Ethernet[/abc] port, plus a subwoofer output and a headphone jack.
The Onkyo TX-8470 also has four HDMI [abc]CEC[/abc] 2.0 inputs compatible with [abc]ALLM[/abc], [abc]VRR[/abc], [abc]HDR10[/abc], [abc]HDR10+[/abc], [abc]HDR HLG[/abc] and one [abc]HDMI[/abc] [abc]ARC[/abc] output. [abc]Ultra HD[/abc] [abc]8K[/abc] compatibility is also included. This makes it easy to enjoy the sound of the TV or a connected TV box, such as nVidia Shield Android TV, Apple TV, PC or game console.
Also noteworthy are four pairs of banana plug compatible terminals (A/B) for broadcasting sound sources in two different rooms. Finally, note a Dimmer function (to lower the display brightness), a devilishly elegant understated design and automatic calibration via the AccuEQ function.
Immediate availability. Recommended price: 799 euros.
Reminder of the key characteristics of the Onkyo TX-8470 amplifier:
• Model: [abc]2.1[/abc]
• Power: 2 x 120 W under 6 ohms
• Signal-to-noise ratio: 106 dB
• THD (total harmonic distortion): 0.08%
• Frequency response: 5 Hz-100 kHz
• Inputs: 4 [abc]HDMI[/abc] 2.0 inputs, 2 [abc]optical[/abc], 1 [abc]coaxial[/abc], 4 stereo [abc]RCA[/abc] including 1 Phono MM/MC input, 2 [abc]USB[/abc] Host ports on the front and rear and 1 [abc]Ethernet[/abc] port
• Outputs: 1 HDMI [abc]ARC[/abc] output, 1 Pre-Out 2.0 output, 1 Pre-Out 2.0 Main output, 1 subwoofer output, 1 headphone output, 1 zone B, 4 pairs of screw terminals (A/B)
• OSD functions
• Audio gateway functions [abc]UPnP[/abc] ([abc]DLNA[/abc])
• Compatibility [abc]Flac[/abc] HD, [abc]AIFF[/abc], [abc]Wav[/abc], [abc]Alac[/abc], [abc]MP3[/abc], [abc]WMA[/abc], [abc]AAC[/abc], [abc]DSD[/abc] 2.8/5.6/11.2 MHz
• Function [abc]ARC[/abc]
• AccuEQ Function
• VLSC Technology
• Asahi Kasei 768 kHz/32-bit DAC
• [abc]HDR10[/abc], [abc]HDR HLG[/abc], [abc]HDR10+[/abc]
• Ultra HD Pass-Throught Function
• Network IP Control
• Network [abc]AirPlay 2[/abc]
• Network Works with Sonos Certification
• Network [abc]Wi-Fi[/abc] ac Dual Band (2.4/5 GHz)
• Network [abc]Chromecast (built-in)[/abc]
• Network [abc]Bluetooth[/abc] 4.2 APT-X
• Roon Ready Multimedia
• Hi-Res Audio Streaming via USB/Network: yes
• Web radios: TuneIn
• AM/FM tuner with 40 presets
• [abc]Hi-Res Audio[/abc] certification
• [abc]HDCP[/abc] 2.3 certification
• [abc]DAB+ tuner[/abc]
• Headphone output: yes
• Dimensions (W x H x D, mm): 435 x 149.5 x 329 mm
• Power consumption: 275 W (0.2 W in standby)
• Weight: 9 kg
